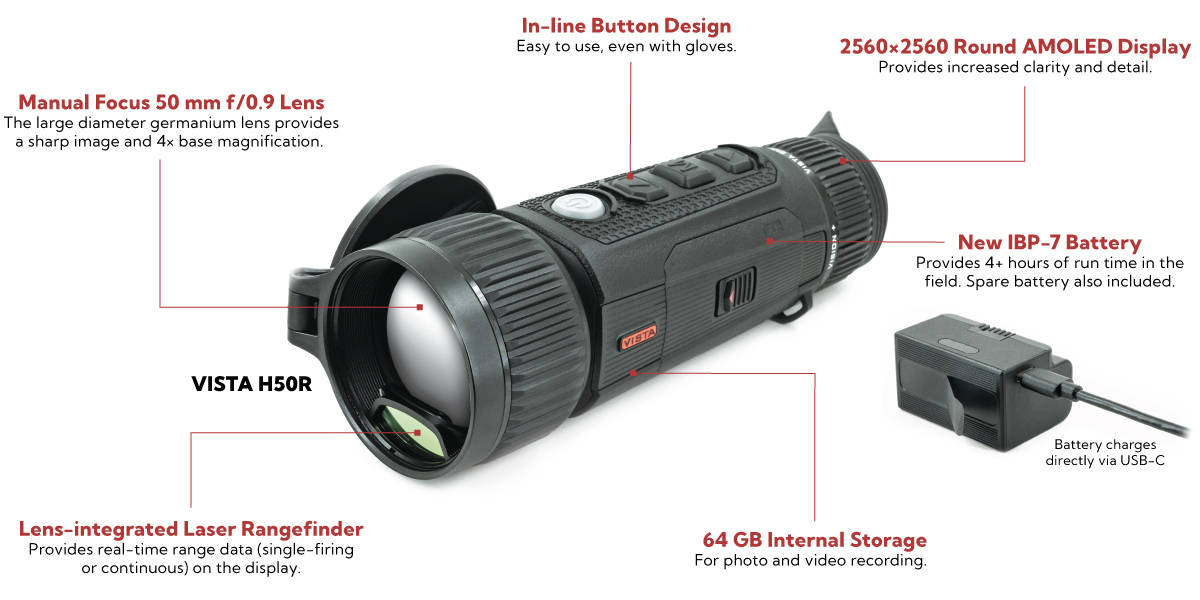

The VISTA handheld thermal monocular features an advanced 50 mm f/0.9 germanium objective lens, offering exceptional clarity and detail. Equipped with a high-resolution 640x512 thermal sensor and an impressive ≤15 mK NETD sensitivity rating, the lightweight and ergonomic monocular delivers crystal-clear images with remarkable detail and contrast, making it perfect for wildlife observation, and security applications. The lens-integrated laser rangefinder enhances its functionality, boasting a maximum detection range of 1,200 yards with a remarkable sensitivity of ±1 yard. Its ergonomic design ensures comfortable handling, while the intuitive interface allows for seamless operation. Perfect for long-range observation, the VISTA includes electronic image stabilization for a smooth, sharp image on the 2560×2560 round AMOLED display. Whether you're scanning for coyotes or conducting night-time surveillance, this is your go-to tool for unparalleled thermal imaging performance.
- Lightweight and compact design easily fits in a pocket or the include MOLLE-compatible pouch.
- Weatherproof rubberized texture increases durability and is not cold to the touch.
- Powered by a common 18650 style rechargeable battery with a spare battery included.
- Advanced R+ image processing provides enhances image quality during digital zoom.
- Onboard photo, video, and audio recording.
- Comfortable ambidextrous vertical design.
-
Optics
Objective Focal Length50mm
Detection Range2400 Yards
Optical Magnification4X
Digital Magnification8X
Objective Lens MaterialGermanium
Horizontal Angular Field of View8.8°
Vertical Angular Field of View6.6°
Objective Diameter50mm
Objective F#0.9
Focusing MechanismManual Focus
Eye Relief25mm
Diopter Range-5 to +5
Display TypeAMOLED
Display Resolution2560×2560
-
Features & Performance
Color PalettesWhite Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
RangefinderIntegrated 1200 yd LRF
Picture-in-PictureYes
Connector OutputPower/Data
User-Updatable FirmwareYes
Mobile AppYes
One-Shot ZeroYes
Stand-by ModeYes
Connector TypeUSB-C
WifiYes
Onboard RecordingYes
Image CaptureYes
Video OutputYes
Storage Capacity64GB
Power SourceUSB-C External, IBP-7 Li-ion Battery Pack
Run Time5+
Warranty5 Years
Startup Time<10 Seconds, Instant from Standby
External Power SourceUSB-C
Country of ManufactureChina
-
Environmental Specifications
Operating Temperature Range-4°F~122°F
Ingress ProtectionIP67
-
Physical
Length7.83
Width2.72
Height3.23
Weight22.93 oz
Housing MaterialPolymer
-
Sensor Specifications
Device TechnologyThermal Imaging
Sensor TypeNocpix 640
Sensor Resolution640×512
Sensor Pixel Size12μm
Sensor Frame Rate60hz
Thermal Sensitivity<15mk
Non-Uniformity Correction (NUC)Manual, Automatic, Semi-Automatic
